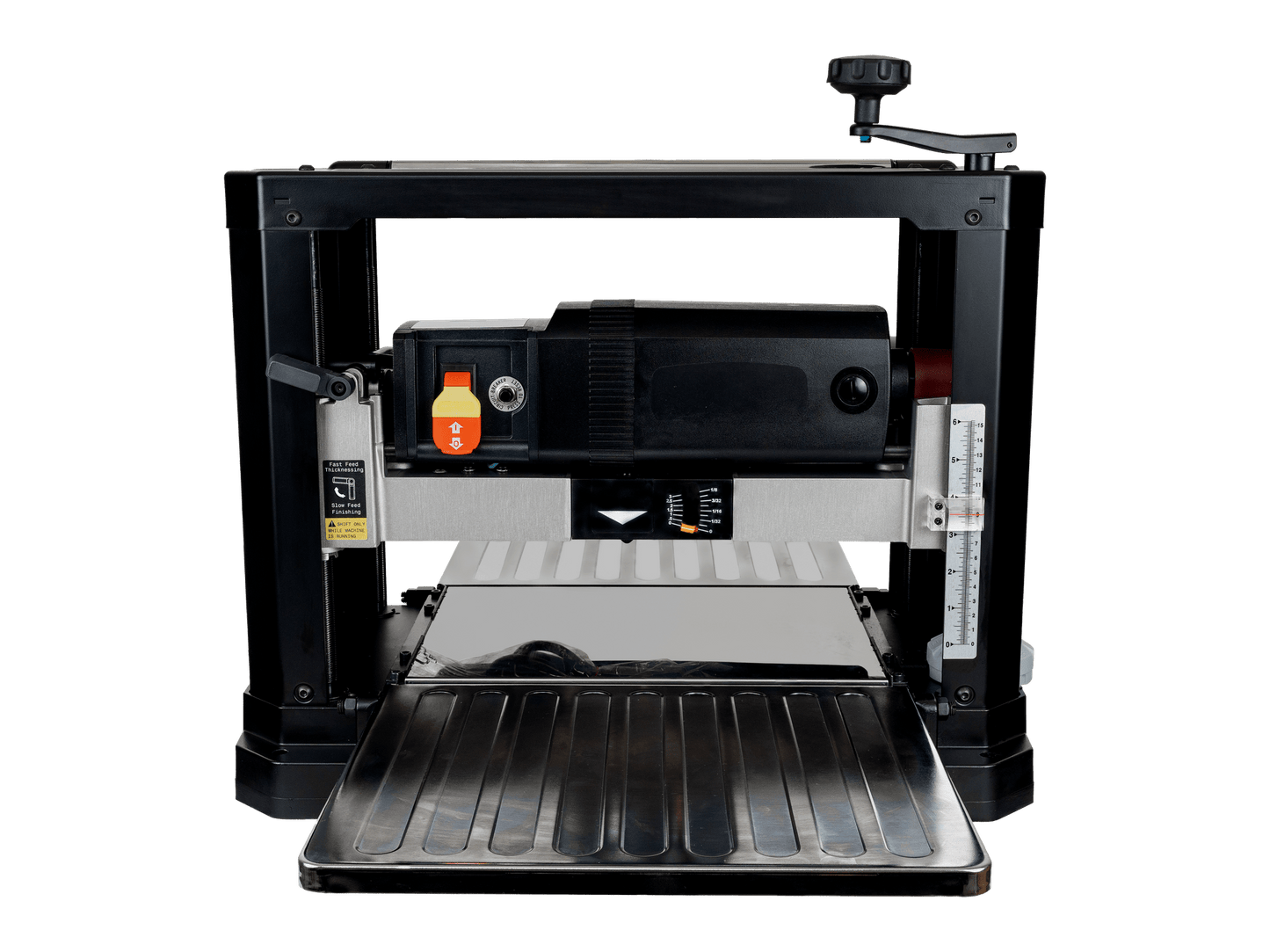

The SHINMAX 13-inch Spiral Cutterhead Benchtop Planer turns rough or uneven boards into smooth, consistent pieces of the same thickness. This portable thickness planer adopts a compact benchtop design that stays stable during operation and features a spiral cutterhead for precise, tear-out-free results. It is ideal for small workshops, job sites, and light professional use.
Key Features
Smooth Spiral Cutting
The 2” spiral cutterhead is equipped with 26 replaceable, indexable inserts (the planer’s cutting blades), each with two sharp cutting edges. When one edge dulls, simply rotate the insert 90° to use the fresh edge.
Two-sided inserts sit in precise alignment with spiral cutterhead, and the unused edge helps lock each insert in place, preventing movement or skewing during planing. This stable design ensures superior precision compared with four-sided inserts. The inserts are available in high-speed steel (HSS) for cost-effective cutting or tungsten carbide for long-lasting performance on hardwoods.
Thanks to its spiral configuration and replaceable inserts, this cutterhead not only produces smoother surfaces, quieter operation, and less tear-out, but also reduces overall maintenance and replacement costs compared with traditional straight-knife planers.
Two-Speed Feed Control
Switch between feed rates to match your material. The 2-speed lever lets you slow down the speed to 16 fpm when planing hardwood or figured wood, reducing tear-out and producing a finer, smoother finish. For general stock removal, return to the higher speed for faster throughput - all with one simple adjustment.
Stable and Accurate Thicknessing
The cutterhead assembly is designed to stay perfectly level throughout each pass. Depending on the model, it is either supported by four lead screws, used in models 40600H, 40700H & 40800H, or by a dual-lead-screw and four-guide-post system in model 40200H. Both designs, paired with infeed and outfeed rollers plus snipe minimizers or a snipe-lock system, maintain cutterhead stability and prevent uneven cuts at the start or end of each board.
Consistent Results for Single or Multiple Boards
The large handwheel and depth-of-cut indicator make it simple to set precise thicknesses. A repeat cut depth stop allows you to produce multiple boards at the same thickness without repeated measuring.
Efficient Dust Collection
The flip dust hood includes 2½” and 4” ports for easy connection to dust collectors. It can be positioned upward to let sawdust discharge freely out the back, or flipped downward to attach a dust collector for optimal chip removal. Effective dust extraction keeps the workspace cleaner, helps maintain blade sharpness, and extends the machine’s service life.
Portable Thickness Planer Design
The 70 lb benchtop design is sturdy yet portable, making it suitable for small workshops or job sites. Onboard tool storage allows for quick insert rotation or replacement during routine maintenance.
Ready to bring the SHINMAX 13-inch Spiral Cutterhead Benchtop Planer to your market? Contact us today to discuss distribution opportunities, bulk orders, or customized specifications for your region.
Specifications
- Motor: 120V / 15A / 60Hz
- Motor Speed (Armature): 23,000 RPM (Revolutions Per Minute)
- Cutterhead Type: Spiral, 2” diameter
- Cutterhead Speed: 10,000 RPM
- Blades/Inserts: 26 two-edge inserts (HSS or tungsten carbide)
- Max Depth of Cut: ⅛” (0.125”)
- Max Cutting Width: 13”
- Max Stock Thickness: 6”
- Feed Rate: 26 / 16 FPM (Feet per Minute)
Dimensions
- Overall Size (W × D × H): 22¼" x 34⅝" x 19⅞"
- Extension Table Size: 14” × 12”
- Dust Port Diameter: 2½” & 4”
- Weight: 2½” & 4”
- Net Weigh: 69.2 lb
