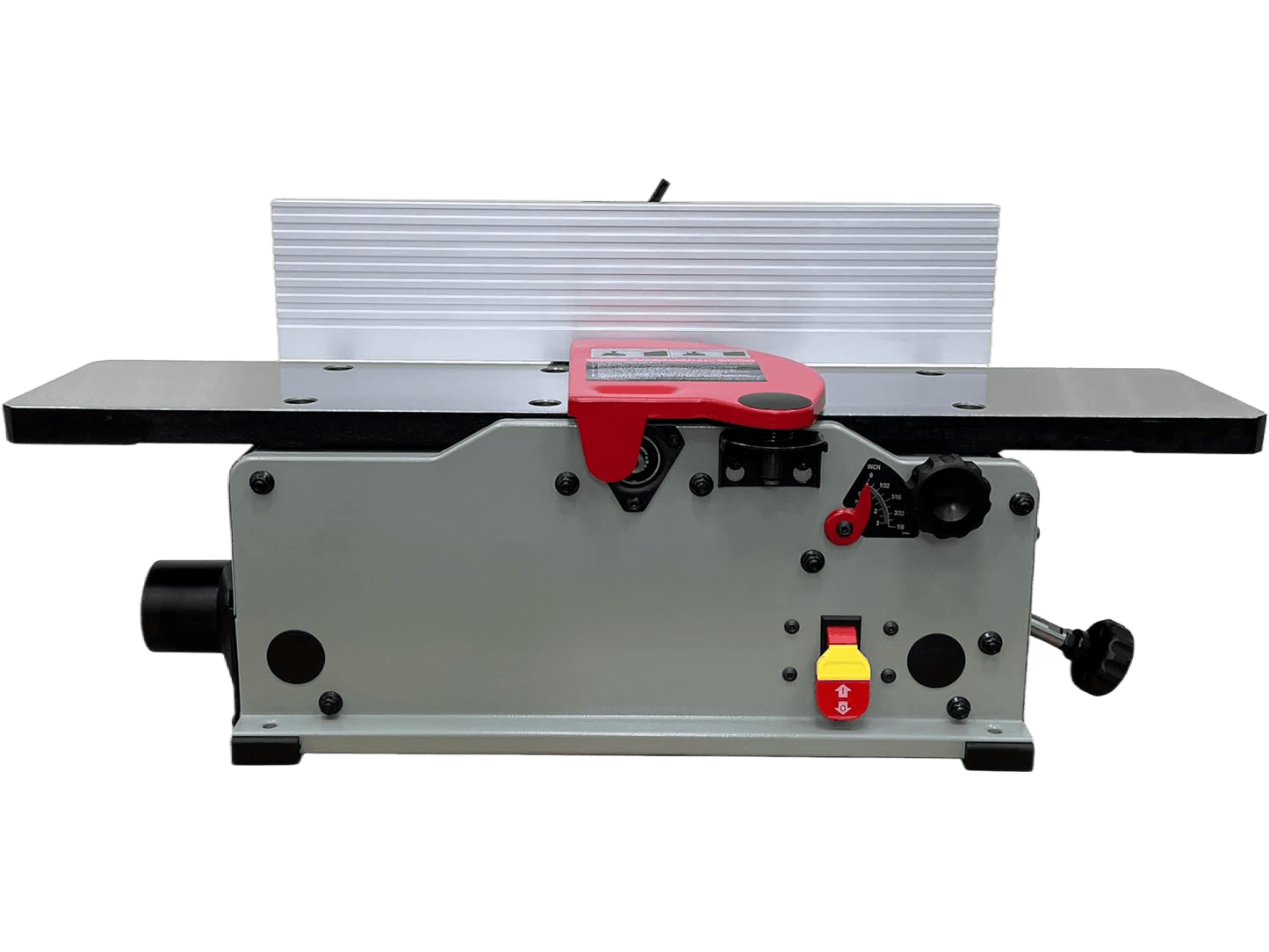

The SHINMAX 6-inch Spiral Cutterhead Benchtop Jointer is a compact, portable jointer designed for small workshops and light professional use. This 6-inch jointer features a spiral cutterhead that delivers smooth, precise results and a choice of aluminum or upgraded cast iron tables for the stability needed in accurate cuts. Together, these features make it an efficient solution for edge-joining and board-flattening tasks without taking up excessive shop space.
Key Features
Essential Edge and Face Jointing
This 6-inch jointer flattens one face and squares one edge of rough or twisted boards, creating straight, accurate surfaces that are ready for glue-ups or further planing.
Smooth and Durable Spiral Cutting
The 2” spiral cutterhead uses 12 replaceable, indexable carbide inserts, each with two cutting edges. When one edge dulls, rotate the insert 90° to use the other; once both wear out, replace only the insert instead of the entire knife set - greatly reducing replacement cost over time. SHINMAX’s two-sided design features broad reference faces that contact the cutterhead pocket, keeping each insert firmly aligned and resistant to shifting under load. This stable geometry delivers lasting sharpness and smooth, tear-free surfaces even on hardwoods or complex grain, outperforming 4-sided inserts in accuracy and finish quality.
Lightweight or Heavy-Duty Table Options
This 6-inch jointer is available with two table materials to match different priorities. The standard aluminum tables keep the machine light at just 37.3 lb, making it easier to move or handle. An upgraded teflon coating protects against corrosion and scratches while hardening the surface to 6H for extended service life. For users who prioritize stability, the upgraded cast iron tables measure 30” × 6¼” and weigh 51.6 lb, creating a solid, vibration-resistant platform that enhances cutting precision and long-term durability.
Accurate Depth Control
This jointer uses a dual guide-post system to keep the infeed and outfeed tables perfectly parallel, so every cut stays straight and consistent. The infeed table lowers slightly to set the depth of cut, while the outfeed table holds the board at the finished height. A clear depth pointer shows exactly how much material you’re removing - up to ⅛” per pass - making it simple to take light, controlled cuts for a smoother surface and less strain on the machine.
Compact and Benchtop-Friendly
Despite its solid build, this jointer remains compact and well-suited for benchtop use in smaller workshops. The 19⅝” × 4⅜” fence supports accurate edge-jointing, while the 2½” dust port connects easily to a dust collector to keep the workspace clean and manageable.
This 6-inch jointer by SHINMAX delivers precise, stable, and portable woodworking performance. Contact us today for distribution opportunities or bulk orders.
Specifications
- Motor: 120V / 10A / 60Hz
- Motor Speed (Armature): 19,000 RPM ± 10%
- Cutterhead Type: Spiral 2” diameter
- Cutterhead Speed: 11,000 RPM (Revolutions Per Minute)
- Blades/Inserts: 12 two-edge tungsten carbide inserts
- Max Depth of Cut: ⅛” (0.125”)
- Max Cutting Width: 6”
Dimensions
- Overall Size (W × D × H): 30” × 17” × 13¼”
- Table Size (L × W): 30” × 6¼”
- Fence Size (L × H): 19⅝” × 4⅜”
- Dust Port Diameter: 2½”
- Net Weight: 37.3 lb
