The SHINMAX 8-inch Spiral Cutterhead Benchtop Jointer offers wider board capacity and a longer support surface than typical benchtop models, making it easier to handle large workpieces in small workshops or light professional settings. This 8-inch jointer features a spiral cutterhead with 16 carbide inserts and a stable, teflon-coated black table. Together, they deliver the smooth, precise cuts needed for face-flattening, edge jointing, and bevel jointing.
Key Features
Face-Flattening for a True Reference Surface
Lay rough or warped boards flat on the jointer table to remove twist, cup, or bow. This creates a perfectly flat reference face, which is the first step for stable, accurate woodworking and smooth planing on the opposite face.
Edge-Jointing with Adjustable Fence
After flattening one face, rest the face firmly against the fence and run the board along the table on its edge. The cutterhead shaves the edge gradually, removing only the high spots until the edge becomes straight and square to the face. This method prepares boards for tight glue-ups or precise rip cuts. The fence tilts from 90° to 135º, allowing both standard edge-jointing and beveled edge preparation for angled assemblies or decorative projects.
Smooth and Durable Spiral Cutting
The 2” spiral cutterhead is fitted with 16 replaceable, indexable tungsten carbide inserts (the jointer’s cutting blades), each offering two sharp cutting edges. When one edge dulls, simply rotate the insert 90º to use the other. When both edges are worn, only the individual inserts need to be replaced instead of an entire knife set, reducing long-term replacement costs and downtime. Two-sided inserts sit in precise alignment with the spiral cutterhead. When installed, the unused edge rests firmly against the seat inside the cuterhead, helping to lock each insert in position and prevent any sideways shift during planing. This stable seating design delivers superior precision compared with four-sided inserts.

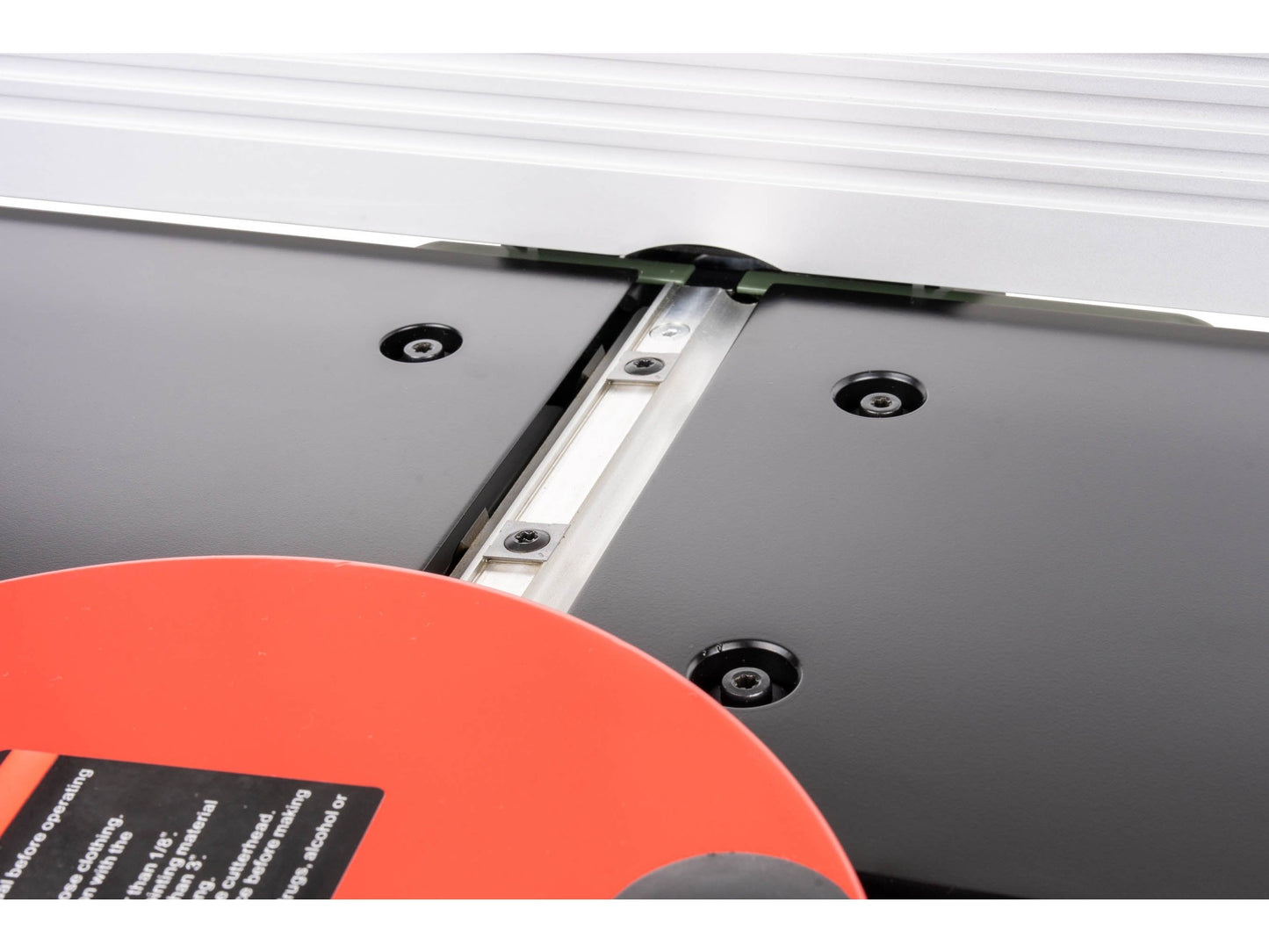

teflon-Coated Black Table with Extension
The 34” × 8¼” table is coated for smooth material feeding and easier cleaning. A built-in extension increases the table length to 51”, giving long boards the stable support needed for accurate jointing.
Accurate Depth Control
The cutting depth can be fine-tuned smoothly and held with precision for repeatable results. The elevation system allows depth settings up to ⅛”, while a clear pointer shows the exact cutting depth for easy reference. Beneath the surface, a dual guide-post mechanism supports the infeed table from both sides, keeping it level and stable as you adjust. This design prevents table inconsistencies and keeps the infeed and outfeed tables perfectly parallel to the cutterhead - ensuring straight, accurate cuts at any depth setting.
Compact and Benchtop-Friendly
Weighing 55.1 lb, this jointer is portable yet stable on a benchtop. Dual dust ports (2½ & 4”) connect to dust collectors, keeping the workspace clean and safe.
This 8-inch jointer delivers precision and portability for small shops and light professional use. Contact us for bulk orders or distribution opportunities.
Specifications
- Motor: 120 V / 10A / 60 Hz
- Motor Speed (Armature): 19,000 RPM (Revolutions Per Minute)
- Cutterhead Type: Spiral, 2” diameter
- Cutterhead Speed: 11,000 RPM
- Blades/Inserts: 16 two-edge tungsten carbide inserts
- Max Depth of Cut: ⅛” (0.125”)
- Max Cutting Width: 8”
Dimensions
- Overall Size (W × D × H): 34” × 19¾” × 13¼”
- Table Size (L × W): 34” (extendable to 51”) × 8¼”
- Fence Size (L × H): 19⅝” × 4⅜”
- Dust Port Diameter: 2½” & 4”
- Net Weigh: 55.1 lb
