SHINMAX’s 10-inch jointer delivers accurate flattening, squaring, and beveling in a compact, portable form. The spiral cutterhead shears wood cleanly in small increments to prevent tear-out, while the stable cast iron tables and adjustable fence keep the workpiece aligned for consistent results. Backed by a 12-amp motor, it maintains cutting power even on tough hardwoods – all in a size fit for small workshops or job sites.
Key Features
Clean, Accurate Cutting

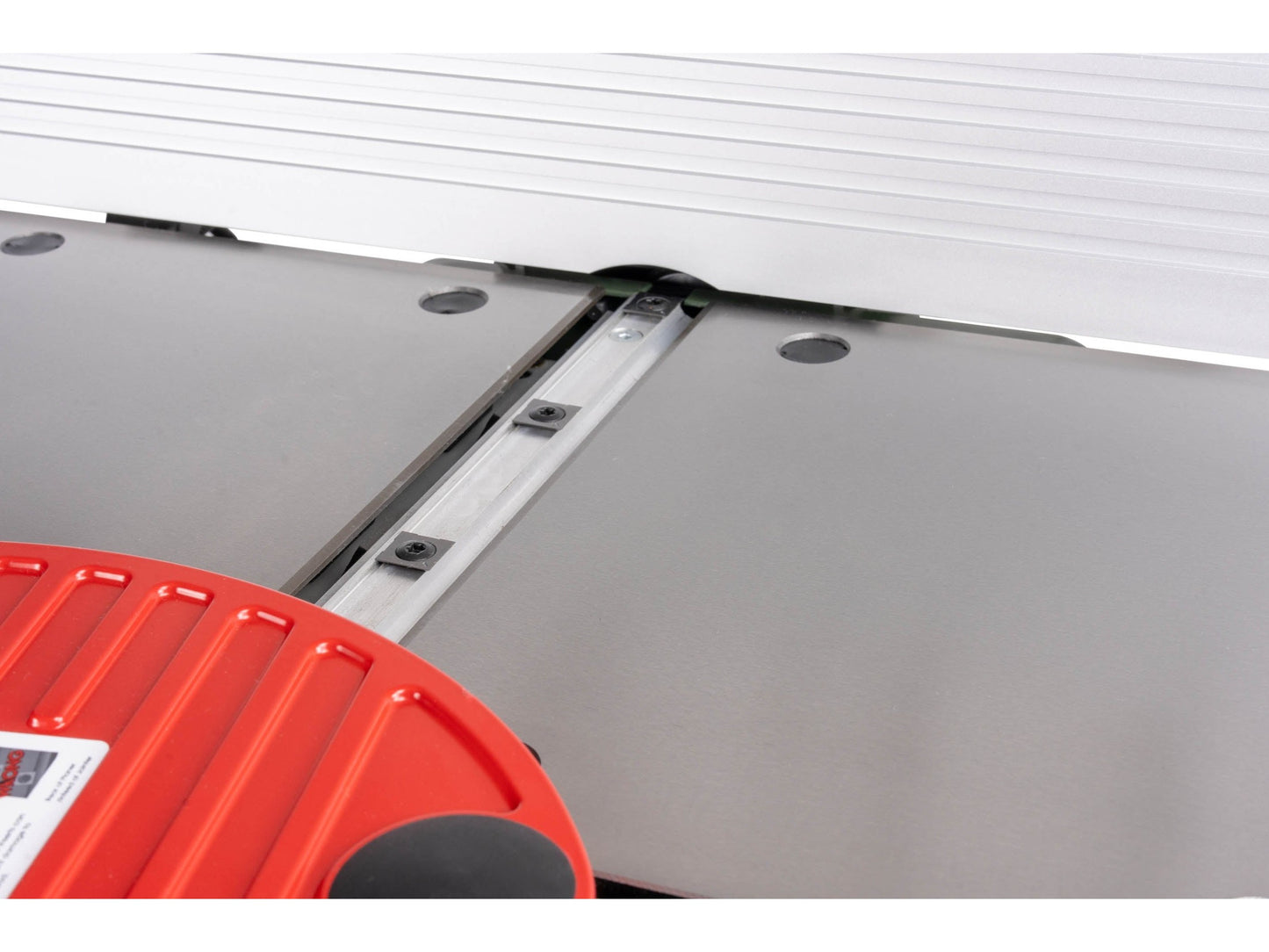

The 10-inch spiral cutterhead uses 20 tungsten carbide inserts arranged in a staggered pattern for smooth, tear-free surfaces on board faces and edges - even with hardwoods or complex grain. Each insert has two cutting edges: when one dulls, it can be rotated 90° to continue cutting with a fresh edge. And when both edges wear out, you can replace only the individual inserts instead of the entire knife set - helping to significantly reduce replacement costs. Two-sided inserts sit in perfect alignment with the spiral cutterhead, and the unused side prevents skewing during planing for greater accuracy and stability. This design ensures superior precision and finish quality compared to 4-sided inserts.
Compact Yet Stable Support
Heavy-duty cast-iron tables provide a flat, stable surface for accurate jointing. The main table measures 34” in length, with extension supports that increase the total working length to 54” - ideal for handling boards while keeping the machine compact and portable for smaller workshops.
Strong Motor Output
Driven by a 12-amp motor, the jointer delivers 19,000 RPM armature speed and 11,000 RPM cutterhead speed – enough power for clean, efficient cuts in demanding materials.
Versatile Fence Adjustments
The 24-inch fence tilts for bevel cutting and locks at preset stops (90º and 135º) to ensure precise, repeatable angles for edge and bevel work.
Easy Depth Control
Adjusting the cutting depth is simple and precise. A smooth-turn elevation handle and clear red pointer let you set and check the depth at a glance. Beneath the surface, a dual guide-post mechanism supports the infeed table from both sides, guiding it straight up and down as you adjust. This keeps the table parallel to the cutterhead, prevents tilting, and ensures every pass produces a straight, even cut - no matter the setting.
Effective Dust Management
Dual dust ports (2½" and 4") allow for secure connection to standard vacuums or dust collection systems, helping keep the workspace clean and ensuring clear visibility during operation.
Built-In Safety Features
Includes a spring-loaded safety guard and pinch point shields that help prevent accidental contact with the cutterhead and moving components.
Looking for a jointer that balances power, precision, and portability? SHINMAX’s 10-inch jointer is ready to support your next woodworking project – explore more or get in touch today.
Specifications
- Motor: 120V / 12A / 60Hz
- Motor Speed (Armature): 19,000 RPM ± 10%
- Cutterhead Type: Spiral, 2” diameter
- Cutterhead Speed: 11,000 RPM (Revolutions Per Minute)
- Blades/Inserts: 20 two-sided tungsten carbide inserts
- Max Depth of Cut: ⅛”
- Max Cutting Width: 10”
- Fence Tilt Range: 90º and 135º (with preset stops)
Dimensions
- Overall Size (W × D × H): 34” (extendable to 54”) × 21¾” × 13¼”
- Table Size (L × W): 34” (extendable to 54”) × 10-3/16”
- Fence Size (L × H): 24” × 4⅜”
- Dust Port Diameter: 2½” & 4”
- Net Weigh: 79.5 lb
