Decoding Jointer & Planer Spiral Cutterhead and Its Alternatives
Choosing the right cutterhead is one of the most important decisions in woodworking. It not only affects productivity but also determines the smoothness and overall quality of the finished surface. Because the terms straight, spiral, and helical are often mixed up or confused with one another, understanding their differences helps woodworkers make informed, confident choices for their machines.
What Is a Cutterhead in Woodworking
A cutterhead is the rotating part of a jointer or planer that holds the cutting blades or inserts. As it spins, it shaves away thin layers of wood to flatten or smooth the surface. This process defines how clean, quiet, and precise each cut will be.
Different cutterhead designs change the way the blades contact the wood, which affects the surface finish, cutting efficiency, and maintenance needs. Understanding these differences helps woodworkers choose the right setup for their material and desired result.
Types of Jointer and Planer Cutterheads
In both jointers and planers, the cutterhead is the key component that shapes the wood – shaving, smoothing, and defining the final surface quality. Not all cutterheads perform the same way, however. Their design affects everything from finish smoothness to noise level and upkeep. The three main types used in modern workshops are straight, helical, and spiral cutterheads.
Jointer
Planer
Straight Cutterhead
A straight cutterhead consists of a simple cylindrical drum fitted with two or three long knives running the full width of the machine. This traditional design cuts the entire width of the board at once, giving it predictable operation and straightforward adjustment.
Straight-knife cutterheads typically use SK5 blades, while more advanced models may upgrade to high-speed steel (HSS). SK5 blades are effective but softer than the HSS or tungsten-carbide inserts used on spiral or helical cutterheads. Therefore, straight knives lose sharpness sooner and require more frequent maintenance.
Each straight knife has two usable edges: when one edge dulls, the blade can be rotated 180º. After both edges are worn, the entire knife must be replaced. Even if only a small section is damaged or chipped, the whole blade must still be replaced, which results in higher material consumption and long-term cost.
The full-width cutting action also generates more noise and vibration, and surface tearing becomes more noticeable once the knives start to dull. Still, their low upfront cost and simple mechanism make straight cutterheads a practical entry-level choice for hobbyists and small workshops.
Helical Cutterhead
A helical cutterhead features rows of small inserts arranged around the drum at a shear angle, allowing each insert to slice diagonally through the wood. This angled cutting motion produces an exceptionally smooth finish with minimal tear-out, reduced noise, and very low vibration. The shearing action also helps maintain consistent quality when working with challenging grain patterns.
The inserts are made from HSS or tungsten carbide, depending on the model. Each offers multiple cutting edges that can be rotated when worn, extending service life and simplifying maintenance. Because helical cutterheads contain significantly more inserts than spiral systems – often 1.5 to 3 times as many – they encounter greater cutting resistance during operation. This requires a stronger motor and a heavier machine structure to maintain safe performance.
For this reason, helical cutterheads are typically used on industrial jointers and planers equipped with induction motors and rigid frames. They are generally unsuitable for benchtop machines, which use series motors that cannot safely accommodate the higher load and would not pass safety regulations with a helical configuration.

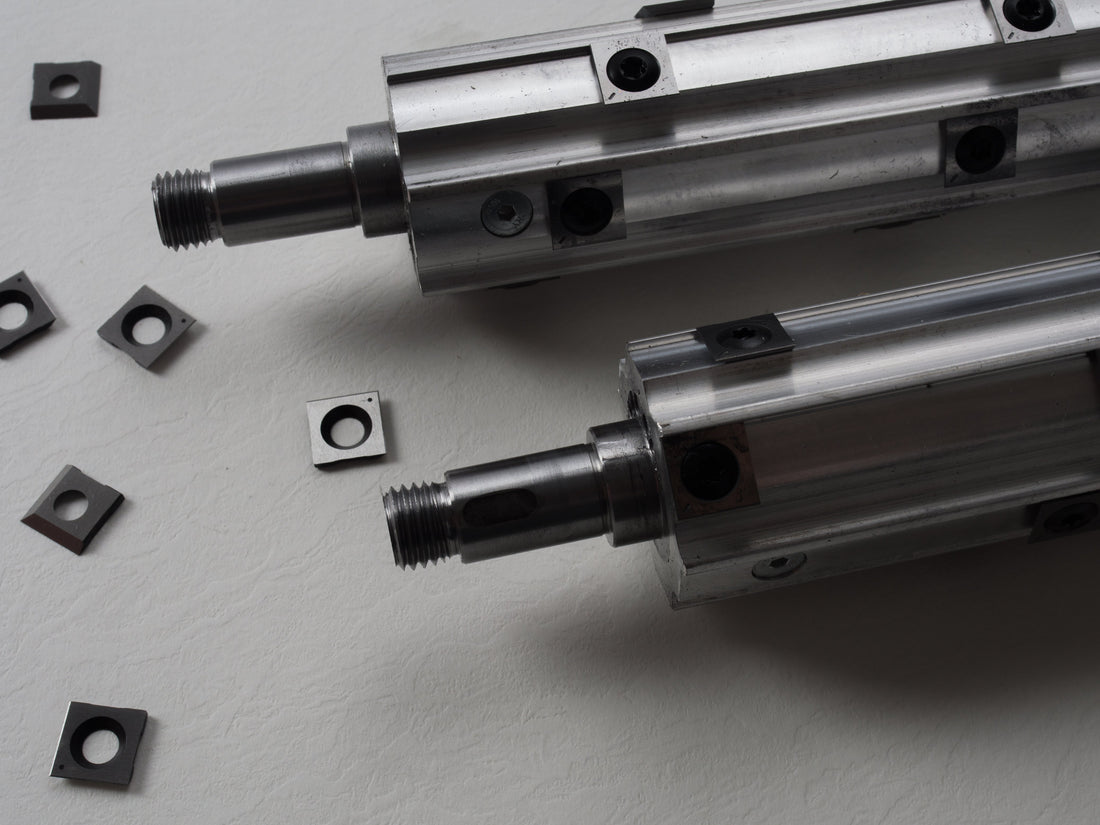

Spiral Cutterhead
A spiral cutterhead uses rows of small, square inserts arranged in a spiral path around the drum. Unlike helical inserts, these are mounted parallel to the wood surface. As the cutterhead rotates, each insert engages the material in a short, overlapping segment, rather than removing a full-width layer at once. This segmented cutting action distributes the load evenly, resulting in quieter operation, reduced vibration, and a smooth, consistent surface.
Spiral inserts are made for HSS or tungsten carbide, offering excellent durability and long edge life compared with SK5 straight knives. Each insert has multiple cutting edges that can be rotated when one becomes worn, reducing maintenance frequency and lowering long-term operating costs.
Because a spiral cutterhead uses fewer inserts than a helical design, fewer cutting edges engage the wood at once. This lowers overall cutting resistance, allowing the cutterhead to run efficiently on the lighter series motors commonly found in benchtop jointers and planers. As a result, spiral systems provide high-quality performance while remaining safe motor load limits.
While many spiral cutterheads use four-sided inserts, SHINMAX adopts a two-sided insert design. The unused side sits flush against the cutterhead seat, helping maintain alignment and minimizing skew. This results in greater cutting accuracy and more consistent surface quality throughout each insert’s lifespan.
Benefits of Choosing Spiral Cutterhead
A spiral cutterhead offers a compelling balance between cost and performance. The following points summarize its key benefits, highlighting why it is popular with small shops and professional contractors:
Smoother Finish
It reduces tear-out and visible cutter marks, producing a surface much smoother than that of a straight blade. Its ability to handle hardwood or medium to highly figured grain makes it versatile for consistent quality.
Quieter Operation
As the inserts engage the workpiece in sequence rather than all at once, operation is quieter and more comfortable for prolonged or indoor work sessions.
Cost-Effective Maintenance
A single insert can be replaced or rotated without changing the entire set, reducing long-term expenses.
Near-helical Performance
Although a helical cutterhead continues to deliver the finest finish, a well-designed spiral cutterhead can achieve near-helical results at a more affordable price point. This makes it an attractive option for users who demand higher performance than straight knives but do not require the premium level of a full helical system.
Why Choose SHINMAX’s Spiral Cutterhead Jointers and Planers?
Understanding the differences between cutterhead types makes it clear that each design serves a different woodworking need. Straight-knife machines offer the lowest entry cost, while helical cutterheads – because of their higher insert count and heavier cutting load – are generally reserved for industrial machines with large induction motors.
For benchtop jointers and planers, a spiral cutterhead provides the ideal balance of cutting quality, durability, and safe motor load, making it the most practical choice for modern workshops.
By choosing SHINMAX’s jointer spiral cutterhead and planer spiral cutterhead machines, workshops gain long-term value, stable operation, and professional surface results. Contact us today to learn more about our spiral cutterhead jointers and planers.
